Prepare a Product Page

1. In the upper left, click on the name of the current page.



2. Click Add New Page.



   Call the page Product Page.

   Click OK.

3. Delete all the components on the page, so the page is blank.

1. Select Variables.

2. Under Page Variables, add the following page variables:



   Variable	Type	Purpose
   ratingcomplete	True/false	Indicates the user gave a rating and we will disable the rating component
   newcomment	Text	Contains the text the user enters as a new comment
   pagesize	Number – set initial value to 3	The number of comments to display, which starts at 3 but can grow
   rating	Number	The rating given by the user for this product, bound to the star rating component’s Value field
   totalcount	Number	The total number of comments for this product, which we get as part of the call to the Comment entity

3. Under Page Parameter, add the following page parameter:

   Field	Type	Purpose
   productID	Text	The product to be displayed on the product page, received when the user clicks on a certain product in the list of products

   Page parameters are variables that are required to pass when navigating to a particular page.

4. Under Data Variables, add a data variable based on the Comment entity (keep the name Comment1).

   Click on the new data variable, open the logic pane, and remove all of the flow functions.



   We will put the logic in a central place, so we can reuse the flow functions.

5. Under Data Variables, add a data variable based on the Products entity (keep the name Product1).

   Set the type of variable to Single data record, and set the ProductID to the following formula:

   JavaScript Copy

   NUMBER(params.productID)



6. Click Save (upper right).

We want to refresh our comments data at many points in our app (e.g., user adds comment or user pages through comments). So we will put the logic in a central place, and create an event that we can call anytime.

1. Return to the view of the canvas, then click in an open spot on the canvas, and then open the logic pane.

2. In the logic, create a logic flow like this:



3. For the Get record collection, set the resource name to Comment.

   Now set the filter, ordering, and paging.



   • For the Filter condition, select the X and select Object with properties.

     Click Add Condition, and set the property productId equal to the page parameter productID.

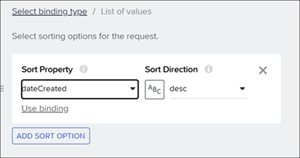

   • For the Ordering, select the X and select List of values.

     Click Add Sort Option, and set the sort property dateCreated and the sort direction to desc.



   • For the Paging, select the X and select Object with properties.

     Set the following values as follows (pagesize is the page variable):



4. For the Set data variable flow function, set the following:

   • Data variable name property to Comment1
   • Record collection to Output value of another node > Get record collection > Collection of records.



5. For the Set page variable, set totalCount variable to Output value of another node > Get record collection > Total count.

6. Drag a Receive event flow function (all the way at the bottom) onto the canvas.



   Set Event source to Fired from “Trigger event” (all the way at the bottom).



   Under Advanced, set the name of the flow function to Refresh Comments.



   This creates an event called Refresh Comments that can be called from other logic flows.

   Connect the new event to the Get record collection flow function.



7. Click Save (upper right).

Whenever someone clicks on one of the products on the List of Products page, we want the user to open the Product Page for that product.

1. Go back to the List of Products page.

2. Select the list component, and open the logic pane.

3. Connect an Open page flow function to the tap event.



   With the flow function selected, in the Properties pane, set the Page property to Product Page.



   Set Parameters > ProductID to the following formula:

   JavaScript Copy

   STRING(repeated.current.ProductID)



4. Click Save.

You can run the app again. Now, when you click a product it will navigate to the Product Page, though it will be empty.
